Product Summary
The AT45DB011B-XU is a 2.7-volt only, serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 1,081,344 bits of memory are organized as 512 pages of 264 bytes each. In addition to the main memory, the AT45DB011B-XU also contains one SRAM data buffer of 264 bytes. The buffer allows receiving of data while a page in the main memory is being reprogrammed.
Parametrics
AT45DB011B-XU absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)All Input Voltages(including NC Pins) with Respect to Ground: -0.6V to +6.25V; (3)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (4)Temperature under Bias: -55℃ to +125℃.
Features
AT45DB011B-XU features: (1)Single 2.7V - 3.6V Supply; (2)Serial Peripheral Interface (SPI) Compatible; (3)20 MHz Max Clock Frequency; (4)Page Program Operation; (5)Supports Page and Block Erase Operations; (6)One 264-byte SRAM Data Buffer; (7)Continuous Read Capability through Entire Array-Ideal for Code Shadowing Applications; (8)Fast Page Program Time ?7 ms Typical; (9)120μs Typical Page to Buffer Transfer Time; (10)Low Power Dissipation: 4 mA Active Read Current Typical; 2μs CMOS Standby Current Typical; (11)Hardware Data Protection Feature; (12)100% Compatible with AT45DB011; (13)Commercial and Industrial Temperature Ranges; (14)Green (Pb/Halide-free) Packaging Options.

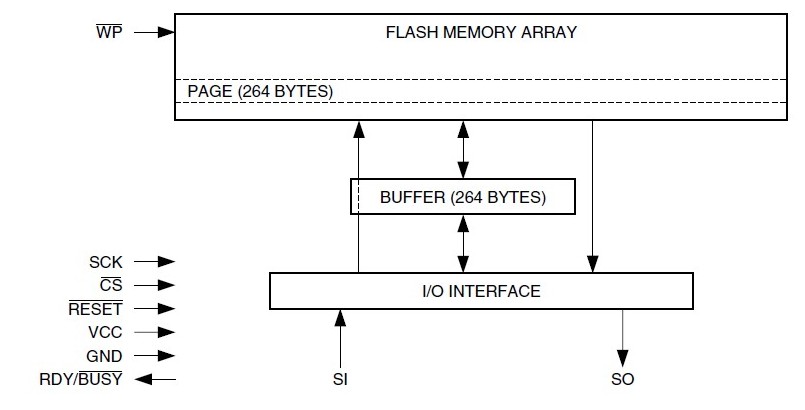

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

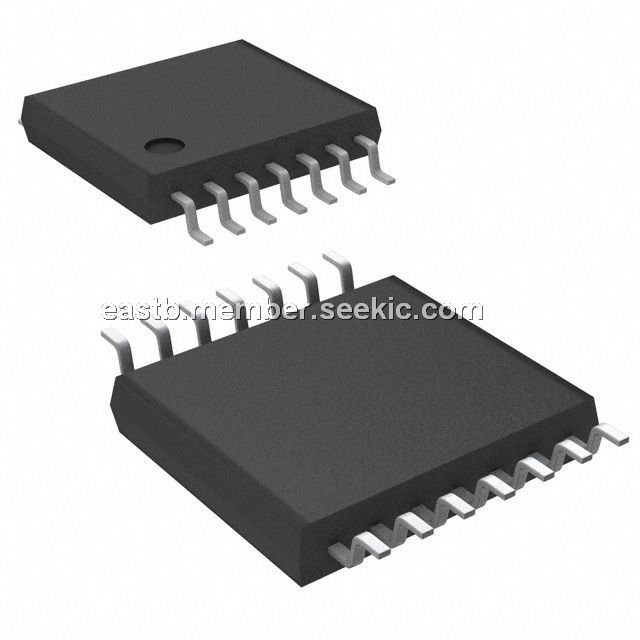

![]() AT45DB011B-XU |
![]() Atmel |
![]() Flash 1M SERIAL 2.7V - IND TEMP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
