Product Summary

The UPD78P054GK-BE9 is an 8-bit single-chip microcontroller, in which the on-chip mask ROM is replaced with one-time PROM or EPROM. Because the UPD78P054GK-BE9 can be programmed by users, it is ideally suited to applications involving the evaluation of systems in development stages, small-scale production of many different products, and rapid development and time-to-market of a new product.

Parametrics

UPD78P054GK-BE9 absolute maximum ratings: (1)Supply voltage: –0.3 to +7.0 V; (2)Input voltage: –0.3 to VDD + 0.3 V; (3)Output voltage: –0.3 to VDD + 0.3 V; (4)Analog input voltage: Analog input pins: – 0.3 to AVREF0 + 0.3 V; (5)Output current, high: –10 mA; (6)Output current, low: 30 mA; (7)Operating ambient temperature: –40 to +85 ℃; (8)Storage temperature: –65 to +150 ℃.

Features

UPD78P054GK-BE9 fetures: (1)Pin compatible with mask ROM versions (except the VPP pin); (2)Internal high-capacity PROM and RAM.

Diagrams

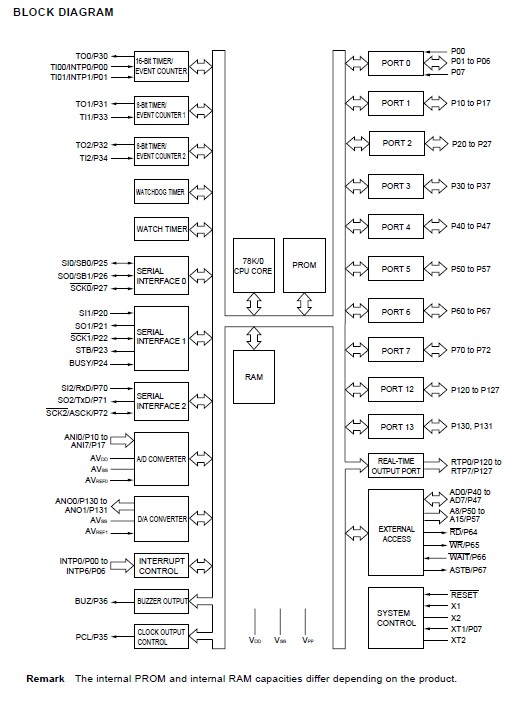

UPD78P054GK-BE9 block diagram
