Product Summary

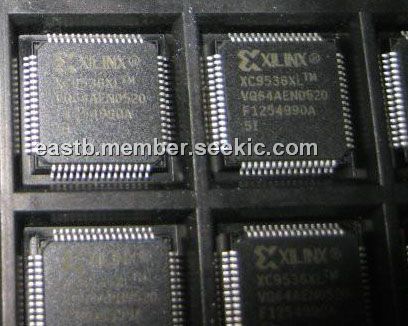

The XC9536XL-5VQ64I is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications communications and computing systems. The XC9536XL-5VQ64I is comprised of two 54V18 Function Blocks, providing 800 usable gates with propagation delays of 5 ns.
Parametrics
XC9536XL-5VQ64I absolute maximum ratings: (1)VCC Supply voltage relative to GND: –0.5 to 4.0V; (2)VIN Input voltage relative to GND: –0.5 to 5.5V; (3)VTS Voltage applied to 3-state output: –0.5 to 5.5V; (4)TSTG Storage temperature: –65 to +150℃; (5)TSOL Maximum soldering temperature (10s @ 1/16 in. = 1.5 mm): +260℃; (6)TJ Junction temperature: +150℃.
Features
XC9536XL-5VQ64I features: (1)5 ns pin-to-pin logic delays; (2)System frequency up to 178 MHz; (3)36 macrocells with 800 usable gates; (4)Fast concurrent programming; (5)Slew rate control on individual outputs; (6)Enhanced data security features; (7)Pin-compatible with 5V-core XC9536 device in the 44-pin PLCC package and the 48-pin CSP package; (8)Low power operation -5V tolerant I/O pins accept 5 V, 3.3V, and 2.5V signals; (9)3.3V or 2.5V output capability; (10)Advanced 0.35 micron feature size CMOS FastFLASH. technology.

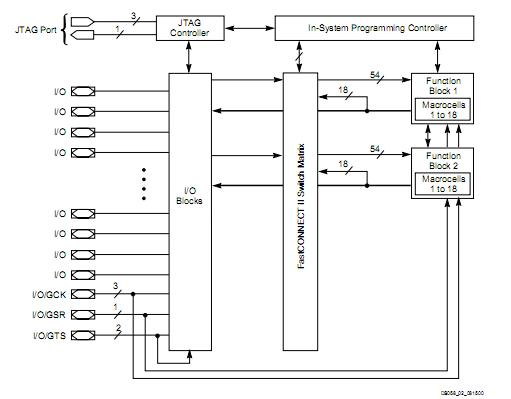

Diagrams
 |
