AD694ARZ-REEL

4-20MA, 16-SOIC, AD694ARZ, monolithic current transmitter, 36 V, Dual Supply Operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~100.00

PartNumber:: AD694ARZ-REEL

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. lucky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-24

From Other Seller

Part Number:AD694ARZ-REEL
US $1.00 - 100.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

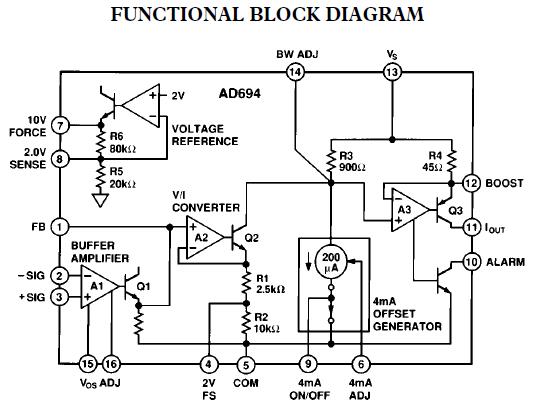

The AD694ARZ-REEL is a monolithic current transmitter that accepts high level signal inputs to drive a standard 4–20 mA current loop for the control of valves, actuators, and other devices commonly used in process control. The input signal of AD694ARZ-REEL is buffered by an input amplifier that can be used to scale the input signal or buffer the output from a current mode DAC. Precalibrated input spans of 0 V to 2 V and 0 V to 10 V are selected by simple pin strapping; other spans of AD694ARZ-REEL may be programmed with external resistor.

Parametrics

AD694ARZ-REEL absolute maximum ratings: (1)Supply Voltage: +36 V; (2)VS to IOUT: +36 V; (3)Input Voltage, (Either Input Pin 2 or 3): –0.3 V to +36 V; (4)Reference Short Circuit to Common: Indefinite; (5)Alarm Voltage, Pin 10: +36 V; (6)4 mA Adj, Pin 6: +1 V; (7)4 mA On/Off, Pin 9: 0 V to 36 V; (8)Storage Temperature Range: –65℃ to +125℃; (9)Lead Temperature, 10 sec Soldering: +300℃; (10)Maximum Junction Temperature: +150℃; (11)Maximum Case Temperature: Plastic Package (N, R): +125℃, Cerdip Package (Q): +125℃.

Features

AD694ARZ-REEL features: (1)4–20 mA, 0–20 mA Output Ranges; (2)Precalibrated Input Ranges: 0 V to 2 V, 0 V to 10 V; (3)Precision Voltage Reference Programmable to 2.000 V or 10.000 V; (4)Single or Dual Supply Operation; (5)Wide Power Supply Range: +4.5 V to +36 V; (6)Wide Output Compliance; (7)Input Buffer Amplifier; (8)Open-Loop Alarm; (9)Optional External Pass Transistor to Reduce Self-Heating Errors; (10)0.002% typ Nonlinearity.
