Product Summary

The TSM101AIDT is a voltage and current controller. The TSM101AIDT incorporates a high stability series band gap voltage reference, two ORed operational amplifiers and a current source. The TSM101AIDT provides a feedback through an optocoupler to the PWM controller IC in the primary side. The device can be used to modify the level of current limitation by offsetting the information coming from the current sensing resistor.

Parametrics

TSM101AIDT absolute maximum ratings: (1)DC supply Voltage:36 V; (2)Output Current:20 mA; (3)Power Dissipation:200 mW; (4)Input Voltage:-0.3V to VCC -1.5 V; (5)Input Current: ±1 mA; (6)Storage Temperature:-40℃ to +125℃; (7)Maximum Junction Temperature:150℃; (8)Thermal Resistante Junction to Ambiant:130℃/W to 200℃/W.

Features

TSM101AIDT features: (1)1.24V series voltage reference with 10mA output current and 1% ; (2)precision; (3)two operational amplifiers with ored output and 1MHZ gain bandwidth product; (4)built-in current generator with enable/disable function; (5)4.5 to 32V supply voltage range ; (6)SO8 and DIP8 packages.

Diagrams

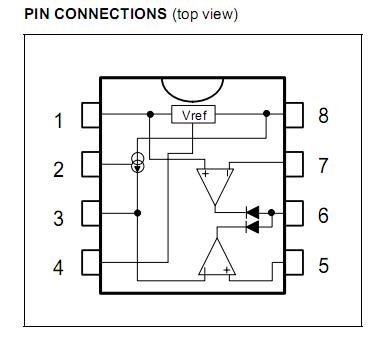

TSM101AIDT pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TSM101AIDT
TSM101AIDT
STMicroelectronics
DC/DC Switching Controllers Voltage/Current Cont
Data Sheet
0-1: $0.29
1-10: $0.26
10-100: $0.21
100-250: $0.18
