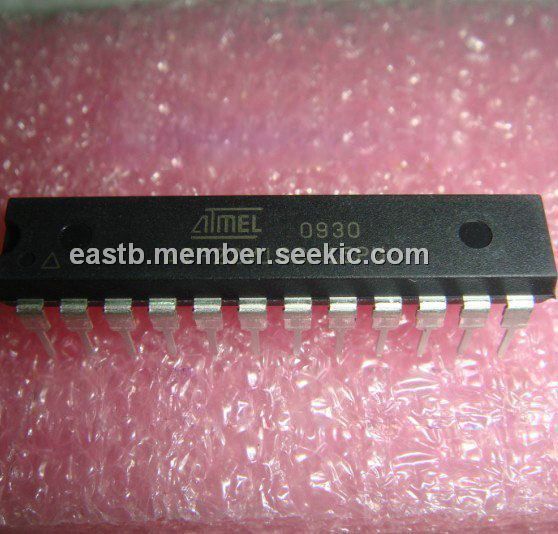

ATF22V10C-15PU

CMOS programmable logic device, 24-DIP, 15ns, 5V, ATF22V10C-15PU, ATMEL

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~100.00

PartNumber:: ATF22V10C-15PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. lucky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-16

From Other Seller

Part Number:ATF22V10C-15PU
US $1.00 - 100.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ATF22V10C-15PU is a high-performance CMOS (electrically erasable) programmable logic device (PLD) that utilizes proven electrically erasable Flash memory technology from Atmel. Speeds down to 5ns and power dissipation as low as 10μA (typical) are offered. All speed ranges of the ATF22V10C-15PU are specified over the full 5V ± 10% range for military and industrial temperature ranges, and 5V ± 5% for commercial temperature ranges.

Parametrics

ATF22V10C-15PU absolute maximum ratings: (1)Temperature under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on Any Pin with Respect to Ground: -2.0V to +7.0V; (4)Voltage on Input Pins with Respect to Ground during Programming: -2.0V to +14.0V; (5)Programming Voltage with Respect to Ground: -2.0V to +14.0V.

Features

ATF22V10C-15PU features: (1)Industry-standard Architecture: Low-cost, Easy-to-use Software Tools; (2)High-speed, Electrically Erasable Programmable Logic Devices: 5ns Maximum Pin-to-pin Delay; (3)Latch Feature Holds Inputs to Previous Logic States; (4)Pin-controlled Standby Power (10μA Typical); (5)Advanced Flash Technology: Reprogrammable; 100% Tested; (6)High-reliability CMOS Process: 20-year Data Retention; 100 Erase/Write Cycles; 2,000V ESD Protection; 200mA Latch-up Immunity; (7)Dual Inline and Surface Mount Packages in Standard Pinouts; (8)PCI-compliant; (9)Green Package Options (Pb/Halide-free/RoHS Compliant) Available; (10)Full Military, Commercial and Industrial Temperature Ranges; (11)Backward-Compatible with Atmel ATF22V10B(Q) and Atmel AT22V10(L); (12)Applications Include Glue Logic for 5.0V Systems, DMA Control, State Machine Control, Graphics Processing.
