CY62146ELL-45ZSXIT

4-Mbit, Static RAM, 45NS, 44TSOP, CY62146ELL-45ZSXIT, -0.5 V to 6.0 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: CY62146ELL-45ZSXIT

Brand:: Cypress Semiconductor - Cypress | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. lucky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-24

From Other Seller

Part Number:CY62146ELL-45ZSXIT
US $1.00 - 10.00
LA76810A

US $0.90 - 1.50 / Piece
(0) Remove
P102W

US $15.00 - 22.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

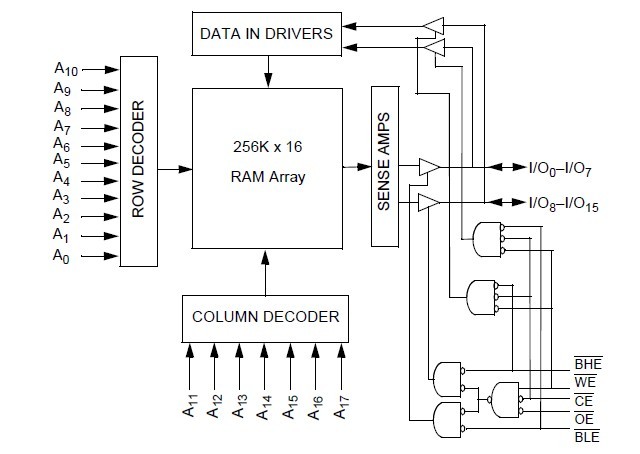

The CY62146ELL-45ZSXIT is a high performance CMOS static RAM organized as 256K words by 16 bits. The CY62146ELL-45ZSXIT features advanced circuit design to provide ultra low active current. It is ideal for providing More Battery Life in portable applications such as cellular telephones. The CY62146ELL-45ZSXIT also has an automatic power down feature that reduces power consumption when addresses are not toggling. Placing the CY62146ELL-45ZSXIT into standby mode reduces power consumption by more than 99% when deselected (CE HIGH).

Parametrics

CY62146ELL-45ZSXIT absolute maximum aratings: (1)Storage temperature: -65 ℃ to +150 ℃; (2)Ambient temperature with; (3)power applied: -55 ℃ to +125 ℃; (4)Supply voltage to ground potential: -0.5 V to 6.0 V; (5)DC voltage applied to outputs: -0.5 V to 6.0 V; (6)DC input voltage: -0.5 V to 6.0 V; (7)Output current into outputs (LOW): 20 mA; (8)Static discharge voltage: >2001 V; (9)Latch-up current: >200 mA.

Features

CY62146ELL-45ZSXIT features: (1)Very high speed: 45 ns; (2)Wide voltage range: 4.5 V to 5.5 V; (3)Ultra low standby power: Typical standby current: 1 μA; Maximum standby current: 7 μA; (4)Ultra low active power: Typical active current: 2 mA at f = 1 MHz; (5)Easy memory expansion with CE and OE features; (6)Automatic power down when deselected; (7)Complementary metal oxide semiconductor (CMOS) for optimum speed and power; (8)Available in Pb-free 44-pin thin small outline package(TSOP)II package.
