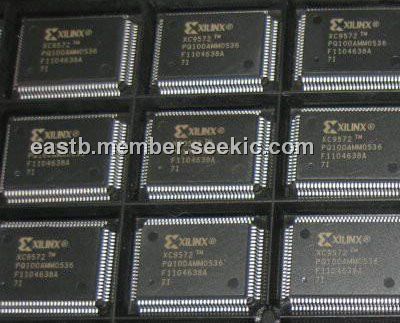

XC9572-7PQ100I

high-performance CPLD, 72 Macrocells, 10ns, 100TQFP, 72 I/O, XC9572-7PQ100I

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~12.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~12.00

PartNumber:: XC9572-7PQ100I

Brand:: Xilinx, Inc - Xilinx | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. lucky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-22

From Other Seller

Part Number:XC9572-7PQ100I
US $8.00 - 12.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

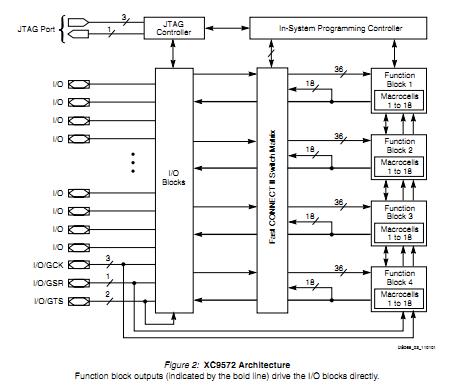

The XC9572-7PQ100I is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. The XC9572-7PQ100I is comprised of eight 36V18 Function Blocks, providing 1,600 usable gates with propagation delays of 7.5 ns.

Parametrics

XC9572-7PQ100I absolute maximum ratings: (1)VCC, Supply voltage relative to GND: –0.5 to 7.0 V; (2)VIN, Input voltage relative to GND: –0.5 to VCC + 0.5 V; (3)VTS, Voltage applied to 3-state output: –0.5 to VCC + 0.5 V; (4)TSTG, Storage temperature (ambient): –65 to +150℃; (5)TJ, Junction temperature: +150℃.

Features

XC9572-7PQ100I features: (1)7.5 ns pin-to-pin logic delays on all pins; (2)fCNT to 125 MHz; (3)72 macrocells with 1,600 usable gates; (4)Up to 72 user I/O pins; (5)5V in-system programmable; (6)Endurance of 10,000 program/erase cycles; (7)Program/erase over full commercial voltage and temperature range; (8)Enhanced pin-locking architecture; (9)Flexible 36V18 Function Block; (10)90 product terms drive any or all of 18 macrocells within Function Block; (11)Global and product term clocks, output enables, set and reset signals; (12)Extensive IEEE Std 1149.1 boundary-scan (JTAG) support; (13)Programmable power reduction mode in each macrocell; (14)Slew rate control on individual outputs; (15)User programmable ground pin capability; (16)Extended pattern security features for design protection; (17)High-drive 24 mA outputs; (18)3.3V or 5V I/O capability; (19)Advanced CMOS 5V FastFLASH technology; (20)Supports parallel programming of more than one XC9500 concurrently; (21)Available in 44-pin PLCC, 84-pin PLCC, 100-pin PQFP, and 100-pin TQFP packages.
