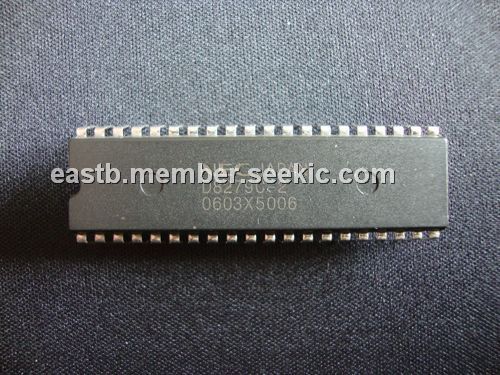

Product Summary

The D8279C is a programmable keyboard display interface providing the user with the ability to display data on alphanumeric segment displays or simple indicators. The display RAM can be programmed to function as a 16×8 bit or dual 16×4 bit memory and can be loaded or read by the host processor. The display can be loaded with right or left entry with an auto-increment of the display RAM address.

Parametrics

D8279C absolute maximum ratings: (1)power supply voltage, VDD: -0.5 to 7.0V; (2)power dissipation, PD: 1.0W; (3)operating temperature, Topt: 0 to 70℃; (4)storage temperature, Tstg: -65 to 150℃.

Features

D8279C features: (1)programmable by processor; (2)32 hex or 16 alphanumeric displays; (3)64 expandable to 128 keyboard; (4)simultaneous keyboard and display; (5)8 character keyboard-FIFO; (6)2 key lockout or N key rollover; (7)contact debounce; (8)programmable scan timer; (9)interrupt on key entry; (10)single +5V ±10% power supply; (11)fully compatible with 8080A, 8085A, UPD780.

Diagrams

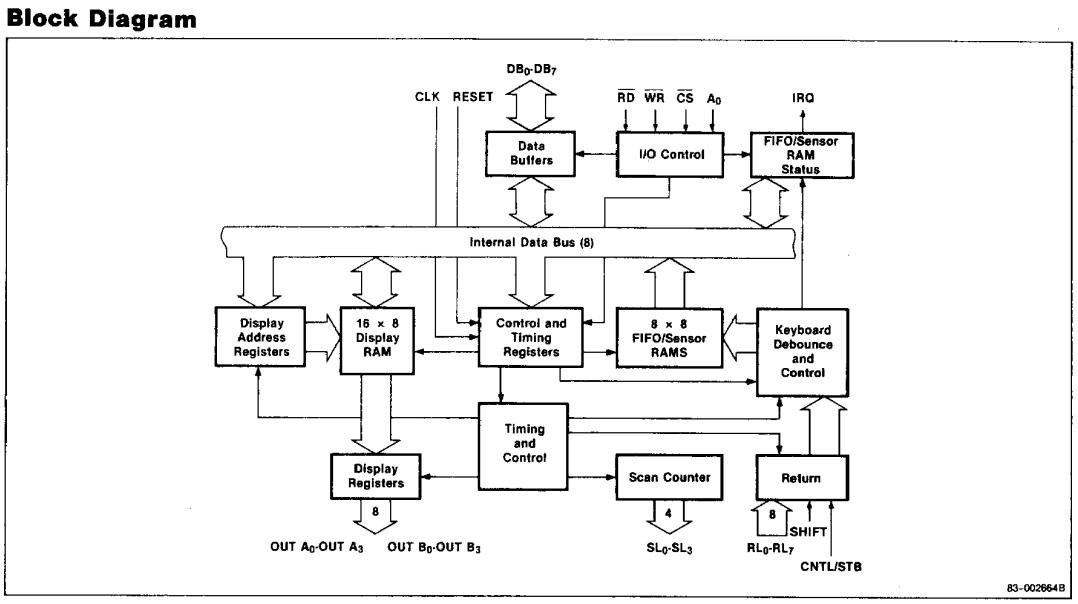

D8279C block diagram
