UPD78C10AGF

CMOS 8-bit microprocessor, QFP, –0.5 to +7.0 V, 4.0 mA, UPD78C10AGF, NEC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: UPD78C10AGF

Brand:: NEC - Nec | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. lucky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-22

From Other Seller

Part Number:UPD78C10AGF
US $1.00 - 3.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

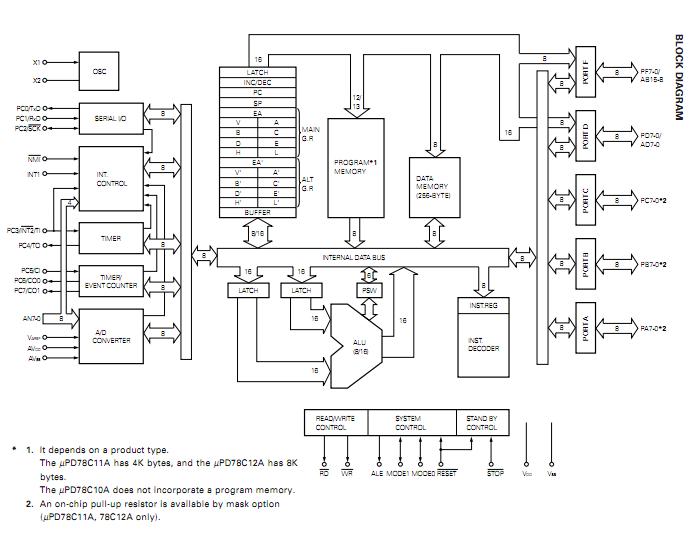

The UPD78C10AGF is a CMOS 8-bit microprocessor which can integrate 16-bit ALU, ROM, RAM, an A/D converter, a multi-function timer/event counter, and a general-purpose serial interface into a single chip, then expand the memory (ROM/RAM) up to 60K bytes externally. The UPD78C10AGF is ideal for evaluation or preproduction use during system development, early start-up and short-run multiple-device production of application sets, are available.

Parametrics

UPD78C10AGF absolute maximum ratings: (1)Power supply voltage, VDD: –0.5 to +7.0 V; AVDD: AVSS to VDD +0.5 V; AVSS: –0.5 to +0.5 V; (2)Input voltage, VI: –0.5 to VDD +0.5 V; (3)Output voltage, VO: –0.5 to VDD +0.5 V; (4)Output current low, IOL: All output pins: 4.0 mA; Total of all output pins: 100 mA; (5)Output current high, IOH: All output pins: –2.0 mA; Total of all output pins: –50 mA; (6)A/D converter reference input voltage, VAREF: -0.5 to AVDD+0.3V; (7)Operating ambient temperature, TA: –40 to +85℃; (8)Storage temperature, Tstg: –65 to +150℃.

Features

UPD78C10AGF features: (1)Abundant 159 types of instructions: 87AD series instruction set, multiplication/division instructions, 16-bit operation instructions; (2)Instruction cycle: 0.8 μs (at 15 MHz operation); (3)On-chip ROM: 4096W × 8 (μPD78C11A), 8192W × 8 (μPD78C12A) Non (μPD78C10A); (4)On-chip RAM: 256W × 8; (5)High-precision 8-bit A/D converter: 8 analog inputs; (6)General-purpose serial interface: Asynchronous, synchronous, I/O interface mode; (7)Multi-function 16-bit timer/event counter; (8)Two 8-bit timers; (9)I/O lines: 32 (μPD78C10A), 44 (μPD78C11A, 78C12A); (10)Interrupt function (external - 3, internal - 8): Non-maskable interrupt × 1, maskable interrupt × 10; (11)Standby function: HALT mode, hardware/software STOP mode; (12)Zero-cross detection function: (2 inputs); (13)On-chip pull-up resistor (port A, B, C: μPD78C11A, 78C12A only) by mask option.
