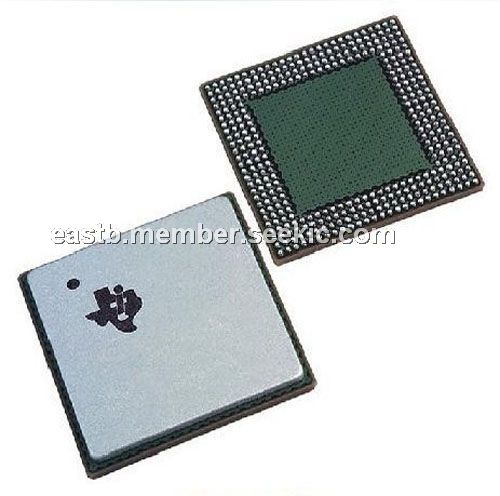

TMS320C6713BPYP

Product Summary

The TMS320C6713BPYP is a floating-point digital signal processor. It is based on the high-performance, advanced very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making this DSP an excellent choice for multichannel and multifunction applications. Operating at 225 MHz, the TMS320C6713BPYP delivers up to 1350 million floating-point operations per second (MFLOPS), 1800 million instructions per second (MIPS), and with dual fixed-/floating-point multipliers up to 450 million multiply-accumulate operations per second (MMACS). The TMS320C6713BPYP has two bootmodes: from the HPI or from external asynchronous ROM. For more detailed information, see the bootmode section of this data sheet.

Parametrics

TMS320C6713BPYP absolute maximum ratings: (1)Supply voltage range:-0.3 V to 1.8 V; (2)Supply voltage range:-0.3 V to 4 V; (3)Input voltage range:+0.3 V to DVDD + 0.5 V; (4)Output voltage range:-0.3 V to DVDD + 0.5 V; (5)Operating case temperature ranges:0℃ to 90℃; (6)Storage temperature range:-65℃ to 150℃.

Features

TMS320C6713BPYP features: (1)Eight 32-Bit Instructions/Cycle; (2)32/64-Bit Data Word; (3)300-, 225-, 200-MHz (GDP and ZDP), and 225-, 200-, 167-MHz (PYP) Clock Rates; (4)3.3-, 4.4-, 5-, 6-Instruction Cycle Times; (5)2400/1800, 1800/1350, 1600/1200, and 1336/1000 MIPS/MFLOPS; (6)Rich Peripheral Set, Optimized for Audio; (7)Highly Optimized C/C++ Compiler; (8)Extended Temperature Devices Available; (9)Load-Store Architecture With 32 32-Bit General-Purpose Registers; (10)Instruction Packing Reduces Code Size; (11)All Instructions Conditional; (12)Byte-Addressable (8-, 16-, 32-Bit Data); (13)8-Bit Overflow Protection; (14)Saturation; Bit-Field Extract, Set, Clear; Bit-Counting; Normalization; (15)Two 32-Bit General-Purpose Timers; (16)Dedicated GPIO Module With 16 pins(External Interrupt Capable); (17)Flexible Phase-Locked-Loop (PLL) Based Clock Generator Module; (18)IEEE-1149.1 (JTAG); (19)Boundary-Scan-Compatible; (20)208-Pin PowerPAD PQFP (PYP) ; (21)272-BGA Packages (GDP and ZDP).

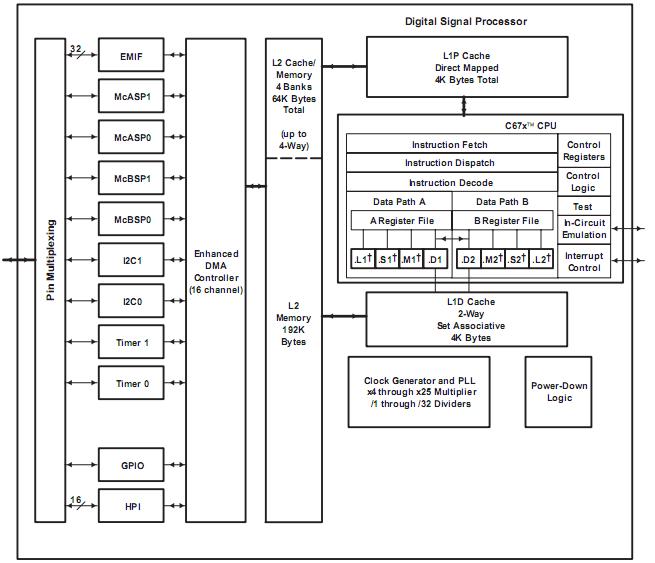

Diagrams
