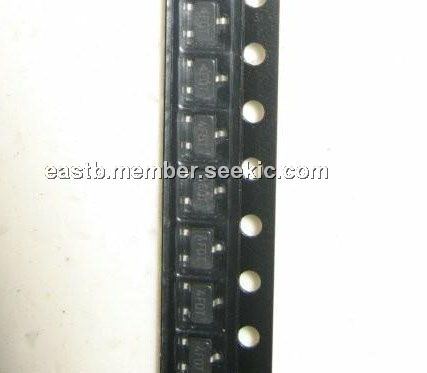

Product Summary

The XC62FP4502MR is a positive voltage output, three-pin regulator which provides a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The XC62FP4502MR consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT-89 (500mW) package is available. The applications of the XC62FP4502MR include Battery Powered Equipment, Palmtops, Portable Cameras and Video Recorders and Reference Voltage Source.

Parametrics

XC62FP4502MR absolute maximum ratings: (1)Input Voltage: 12 V; (2)Output Voltage: VSS-0.3 ~ VIN+0.3 V; (3)Output Current: 500 mA; (4)Continuous Total Power Dissipation: SOT-23, 150 mW; SOT-89, 500 mW; TO-92 300 mW; (5)Operating Ambient Temperature: –40 ~ +85 ℃; (6)Storage Temperature: –40 ~ +125 ℃.

Features

XC62FP4502MR features: (1)CMOS Low Power Consumption; (2)Small Input-Output Voltage Differential: 0.12V @ 100mA, 0.38V @ 200mA; (3)Maximum Output Current : 250mA (VOUT=5.0V); (4)Output Voltage Range : 2.0V to 6.0V; (5)Highly Accurate : ±2% (±1%).

Diagrams

XC62FP4502MR block diagram
