Product Summary

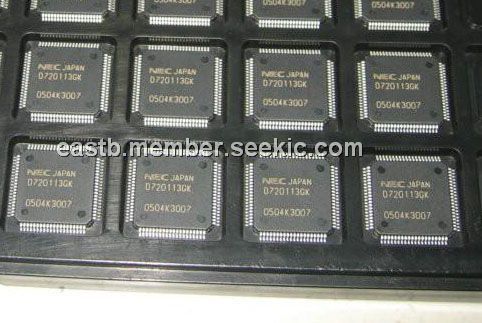

The UPD720113GK-9EU is an USB 2.0 HUB controller that complies with the Universal Serial Bus (USB) Specification Revision 2.0 and works up to 480 Mbps. USB 2.0 compliant transceivers are integrated for upstream and all downstream ports. The UPD720113GK-9EU works backward compatible either when any one of the downstream ports is connected to a USB 1.1 compliant device, or when the upstream port is connected to a USB 1.1 compliant host.

Parametrics

UPD720113GK-9EU absolute maximum ratings: (1)power supply votlage, VDD33: -0.5 to 4.6V; VDD25: -0.5 to 3.6V; AVDD: -0.5 to 3.6V; (2)input/output voltage, VI/VO: -0.5 to 3.6V; (3)output current, IO: 10mA; (4)operating temperature, TA: 0 to 70℃; (5)storage temperature, Tstg: -65 to 150℃.

Features

UPD720113GK-9EU features: (1)Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps); (2)Certified by USB implementers forum and granted the USB 2.0 high-speed Logo; (3)High-speed or full-speed packet protocol sequencer for Endpoint 0/1; (4)7 (Max.) downstream facing ports; (5)All downstream facing ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) transaction; (6)Supports split transaction to handle full-speed and low-speed transaction on downstream facing ports when Hub controller is working in high-speed mode; (7)One Transaction Translator per Hub and supports four non-periodic buffers; (8)Support self-powered mode; (9)Supports Over-current detection and Individual or ganged power control; (10)Supports configurable vendor ID, product ID, string descriptors and others with external Serial ROM; (11)Supports non-removable attribution on individual port; (12)Uses 30 MHz X’tal, or clock input; (13)2.5 V and 3.3 V power supplies.

Diagrams

UPD720113GK-9EU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UPD720113GK-9EU-A
UPD720113GK-9EU-A


IC HUB CTLR USB2.0 7-PORTS QFP

Data Sheet

0-50: $5.87
