Product Summary

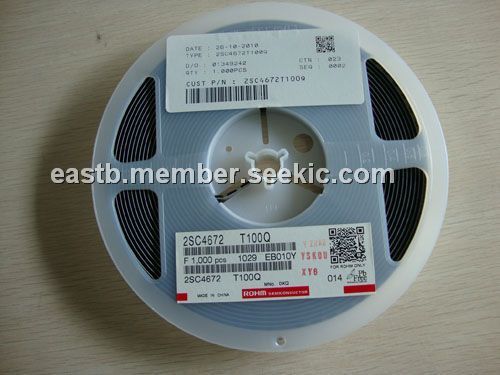

The 2SC4672T100Q is a Low Frequency Transistor.
Parametrics
2SC4672T100Q absolute maximum ratings: (1)Collector-base voltage, VCBO: 60V; (2)Collector-emitter voltage, VCEO: 50V; (3)Emitter-base voltage, VEBO: 6V; (4)Collector current, IC: 3A (DC); 6A(pulse); (5)Collector power dissipation, Pc: 0.2W; (6)Junction temperature, Tj: 150℃; (7)Storage temperature, Tstg: -55 to 150℃.
Features
2SC4672T100Q features: (1)Low saturation voltage, typically VCE (sat) =0.1V at IC/IB =1A /50mA; (2)Excellent DC current gain characteristics; (3)Complements the 2SA1797.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC4672T100Q |
ROHM Semiconductor |
Transistors Bipolar (BJT) NPN 50V 3A |
Data Sheet |
|
|
||||||||||||||
