Product Summary

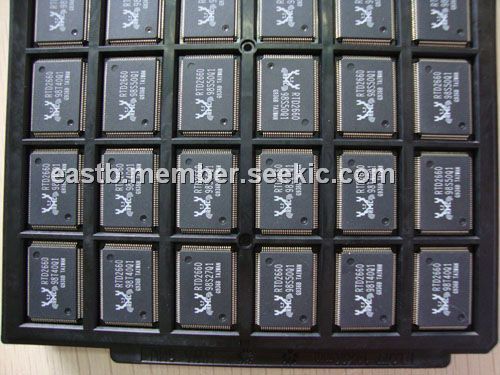

The RTD2660 is a Flat Panel Display Controller.
Parametrics
RTD2660 absolute maximum ratings: (1)Voltage on Input (5V tolerant), VIN: -1 to 5 V; (2)Electrostatic Discharge, VESD: ±2.5 kV; (3)Latch-Up ILA: ±100 mA; (4)Ambient Operating Temperature, TA: 0 to 70℃; (5)Storage temperature (plastic), TSTG: -55 to 125℃; (6)Thermal Resistance (Junction to Air), θJA: 25℃/W; (7)Junction Acceptable Temperature, Tj: 125℃.
Features
RTD2660 features: (1)Embedded 3 DDC with DDC1/2B/CI; (2)Zoom scaling up and down; (3)Embedded one MCU with SPI flash controller; (4)It contains 8 ADCs in D-connector,LED backlight,and key pad application; (5)It supports infrared remote function; (6)Require only one crystal to generate all timing; (7)Programmable internal low-voltage-reset (LVR); (8)High resolution 6 channels PWM output, and wide range selectable PWM frequency; (9)Support input format up to 1920(WUXGA)/1440-pixel width(option).

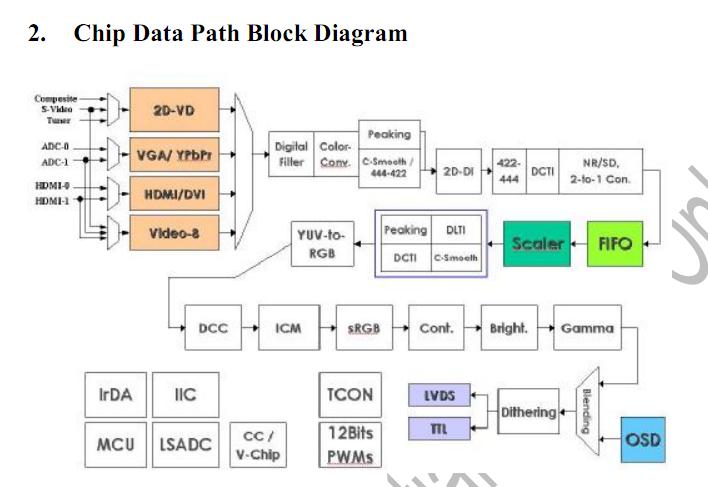

Diagrams
 |
