Product Summary
The UPSD3233BV-24T6 is a flash programmable system device with 8032 microcontroller core. The UPSD3233BV-24T6 combines a fast 8051- based microcontroller with a flexible memory structure, programmable logic, and a rich peripheral mix including USB, to form an ideal embedded controller. At the core of the UPSD3233BV-24T6 is an industry-standard 8032 MCU operating up to 40MHz. A JTAG serial interface is used for In-System Programming (ISP) in as little as 10 seconds, perfect for manufacturing and lab development.
Parametrics
UPSD3233BV-24T6 absolute maximum ratigns: (1)TSTG Storage Temperature: –65 125℃; (2)TLEAD Lead Temperature during Soldering (20 seconds max.): 235℃; (3)VIO Input and Output Voltage (Q = VOH or Hi-Z): –0.5 6.5 V; (4)VCC Supply Voltage: –0.5 6.5 V; (5)VPP Device Programmer Supply Voltage: –0.5 14.0 V; (6)VESD Electrostatic Discharge Voltage (Human Body Model): -2000 2000 V.
Features
UPSD3233BV-24T6 features: (1)FAST 8-BIT 8032 MCU; (2)40MHz at 5.0V, 24MHz at 3.3V; (3)Core, 12-clocks per instruction; (4)Dual flash memories with memory management; (5)Place either memory into 8032 program; (6)address space or data address space; (7)READ-while-WRITE operation for In-; (8)Application Programming and EEPROM emulation; (9)Single voltage program and erase; (10)100K minimum erase cycles, 15-year retention.

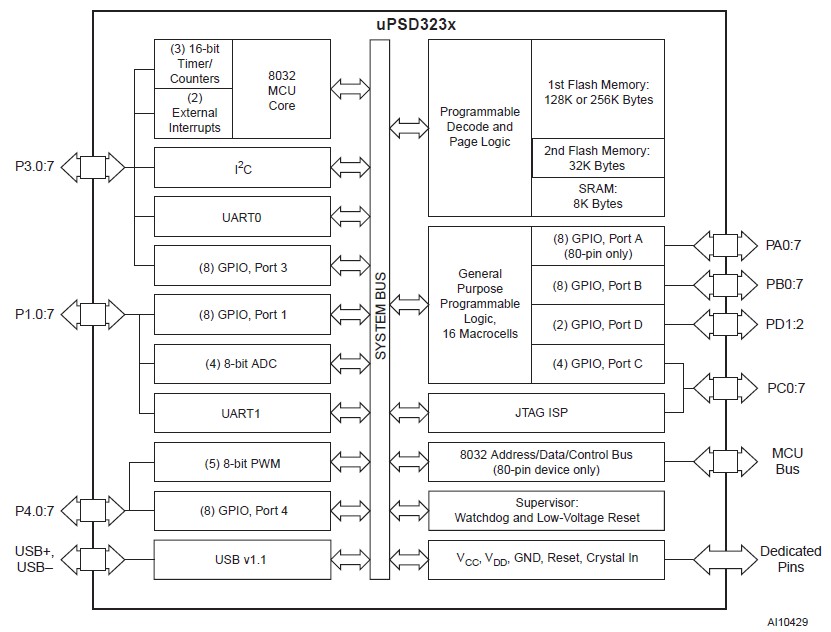

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 UPSD3233BV-24T6 |
STMicroelectronics |
8-bit Microcontrollers (MCU) 3.0V 1M 24MHz |
Data Sheet |
Negotiable |
|
||||
|
UPSD3233BV-24T6T |
STMicroelectronics |
8-bit Microcontrollers (MCU) Flash Programmable System Devices |
Data Sheet |
Negotiable |
|
||||
