Product Summary
The ADUM1402ARWZ is a quad-channel digital isolator. Its applications include general-purpose multichannel isolation; (2)SPI interface/data converter isolation; (3)RS-232/RS-422/RS-485 transceiver; (4)Industrial field bus isolation.
Parametrics
ADUM1402ARWZ absolute maximum ratings: (1)Storage temperature, TST: -65 to 150℃; (2)Ambient operating temperature, TA: -40 to 105℃; (3)Supply voltage, VDD1, VDD2: -0.5 to +7.0V; (4)Input voltage: -0.5 to VDD1+0.5V; (5)Output voltage: -0.5 to VDDO+0.5V; (6)Average output current: -18 to +18mA; (7)Common-mode transients: -100 to +100kV/μs.
Features
ADUM1402ARWZ features: (1)Low power operation; (2)Bidirectional communication; (3)3V/5V level translation; (4)High temperature operation: 105℃; (5)High data rate: dc to 90Mbps; (6)Precise timing characteristics; (7)High common-mode transient immunity: >25kV/μs; (8)Output enable function; (9)Wide body 16-lead SOIC package, Pb-free models available; (10)Safety and regulatory approvals.

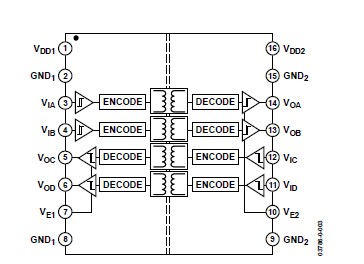

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADUM1402ARWZ |
|
IC DIGITAL ISOLATOR 4CH 16-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
ADUM1402ARWZ-RL |
|
IC DGITAL ISOLATOR 4CH 16-SOIC |
Data Sheet |
|
|
||||||||||||||||
