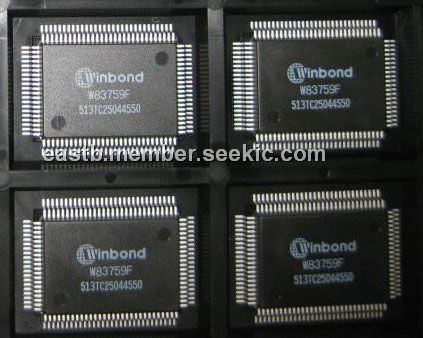

W83759F

advanced vl-ide disk controlle, QFP100, W83759F, Winbond, -0.3 to 7.0 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~10.00

PartNumber:: W83759F

Brand:: Winbond - Winbond | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. lucky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-22

From Other Seller

Part Number:W83759F
US $8.00 - 10.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The W83759F is an advanced vl-ide disk controller. It is an advanced version of Winbond’s popular VL-IDE interface chip.

Parametrics

W83759F absolute maximum ratings: (1)Power Supply Voltage: -0.3 to 7.0 V; (2)Input Voltage: VSS-0.3 to VDD +0.3 V; (3)Operating Temperature (Ta): 0 to + 70℃; (4)Storage Temperature: -55 to + 150℃.

Features

W83759F features: (1)Pin-to-pin backward compatible with W83759 VL-IDE Interface chip; (2)VESA VL-Bus Rev 2.0 compatible, connects directly to local bus and four IDE drives; (3)Direct interface to various ANSI ATA/ATA-2/FAST ATA/IDE-2/Enhanced IDE drives; (4)Supports 32 and 16-bit data transfer; (5)Fully software programmable for command active/recovery time and address setup, data hold time; (6)Built-in VL-Bus to 16-bit IO data buffer for special applications; (7)Fully supports Enhanced IDE features, including Fast PIO, Mode 3/4, IORDY flow control, prefetch control; (8)Supports dual channels to allow up to four drives or non-disk devices (ATAPI CD-ROM and tape drives); (9)Pipeline pre-fetched reads and posted writes for concurrent disk and host operations; (10)Independent access timing for all drives (primary/secondary and master/slave); (11)All Enhanced IDE new features may be disabled/enabled via driver or power-on setting by per drive selectability; (12)ATA/Mode 0-4 PIO speed may be set as default timing of each drive via power-on jumper setting; (13)Supports slave DMA mode protocol (reserved); (14)Supports auto power-down, standby, suspend APM power management state for green PCs; (15)Primary and secondary channel can be independently enabled/disabled by software or jumper setting; (16)Supports drivers for DOS, Windows, OS/2, UNIX, and Netware; (17)Packaged in 100-pin QFP.
