Product Summary

The DCR010505U is a high-efficiency, inputisolated, output-regulated DC/DC converter. In addition to 1W nominal, galvanically-isolated output power capability, this range of DC/DCs offer very low output noise, thermal protection and high accuracy. The applications of the DCR010505U include point-of-use power conversion,digital interface power, ground loop elimination and power-supply noise reduction.

Parametrics

DCR010505U absolute maximum ratings: (1)Input Voltage: 7V; (2)Storage Temperature: –60℃ to +125℃; (3)Lead Temperature (soldering, 10s): 270℃.

Features

DCR010505U features: (1)UL1950 recognized; (2)PDIP-18, SO-28(1); (3)53W/in3 (3.3W/cm3) power density; (4)device-to-device synchronization; (5)thermal protection; (6)1000Vrms isolation; (7)400kHz switching; (8)125 fits at 55℃; (9)±10% input range; (10)short-circuit protected; (11)5V, 12V, 24V inputs; (12)3.3V, 5V outputs; (13)high efficiency.

Diagrams

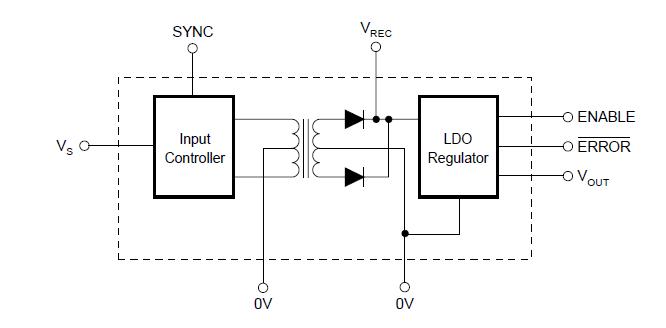

DCR010505U block diagram
