Product Summary
The LMZ12003TZ-ADJ is a 3A simple switcher Power Module with 20V Maximum Input Voltage. The applications of the device include Point of load conversions from 5V and 12V input rail, Time critical projects, Space constrained high thermal requirement applications and Negative output voltage applications.
Parametrics
LMZ12003TZ-ADJ absolute maximum ratings: (1)VIN, RON to GND: -0.3V to 25V; (2)EN, FB, SS to GND: -0.3V to 7V; (3)Junction Temperature: 150℃; (4)Storage Temperature Range: -65 to 150℃; (5)ESD Susceptibility: ± 2 kV.
Features
LMZ12003TZ-ADJ features: (1)Integrated shielded inductor; (2)Simple PCB layout; (3)Flexible startup sequencing using external soft-start capacitor and precision enable; (4)Protection against inrush currents and faults such as input UVLO and output short circuit; (5)-40 to 125℃ junction temperature range; (6)Single exposed pad and standard pinout for easy mounting and manufacturing; (7)Fast transient response for FPGAs and ASICs; (8)Low output voltage ripple; (9)Fully Webench Power Designer enabled.
Diagrams

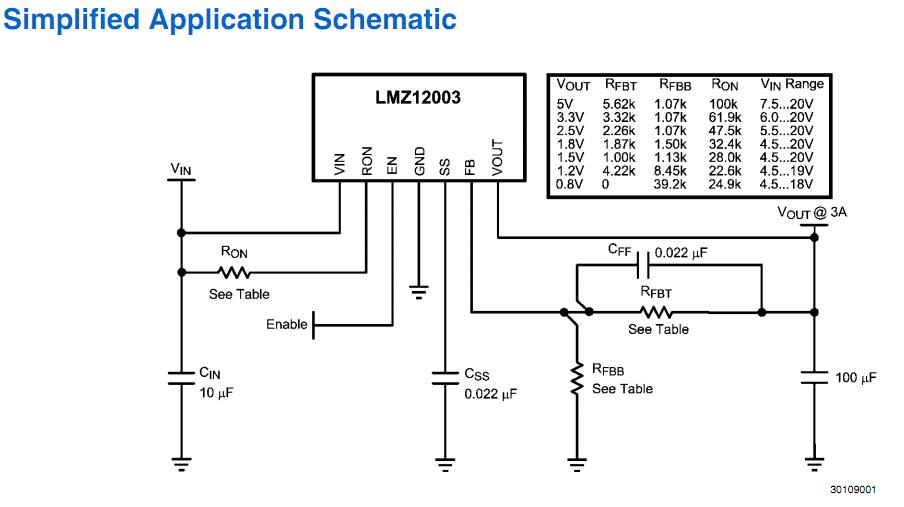

Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

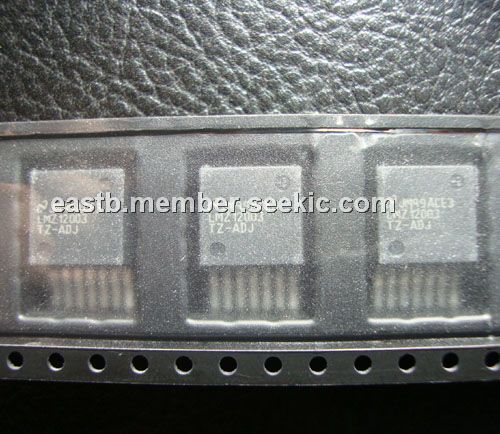

LMZ12003TZ-ADJ/NOPB |
National Semiconductor (TI) |
DC/DC Switching Converters 20V,3A PWR MODULE |
Data Sheet |
|
|
|||||||||||||
