MSP430FW427IPMR

Product Summary

The MSP430FW427IPMR is an ultralow power microcontroller. It consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430FW427IPMR features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6μs. Applications of the MSP430FW427IPMR include: sensor systems that capture analog signals, convert them to digital values, and process the data and transmit them to a host system. The comparator and timers make the configurations ideal for gas, heat, and water meters, industrial meters, counter applications, handheld meters, etc.

Parametrics

MSP430FW427IPMR absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to + 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC + 0.3 V; (3)Diode current at any device termina: ±2 mA; (4)Storage temperature (unprogrammed device): -55℃ to 150℃; (5)Storage temperature (programmed device): -40℃ to 85℃.

Features

MSP430FW427IPMR features: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Ultralow-Power Consumption: Active Mode: 200 μA at 1 MHz, 2.2 V; Standby Mode: 0.7 μA; Off Mode (RAM Retention): 0.1 μA; (3)Five Power-Saving Modes; (4)Wake-Up From Standby Mode in less than 6 μs; (5)Frequency-Locked Loop, FLL+; (6)16-Bit RISC Architecture, 125-ns Instruction Cycle Time; (7)Scan IF for Background Water, Heat, and Gas Volume Measurement; (8)16-Bit Timer_A With Three Capture/Compare Registers; (9)16-Bit Timer_A With Five Capture/Compare Registers; (10)Integrated LCD Driver for Up to 96 Segments; (11)On-Chip Comparator; (12)Brownout Detector; (13)Supply Voltage Supervisor/Monitor With Programmable Level Detection; (14)Bootstrap Loader in Flash Devices.

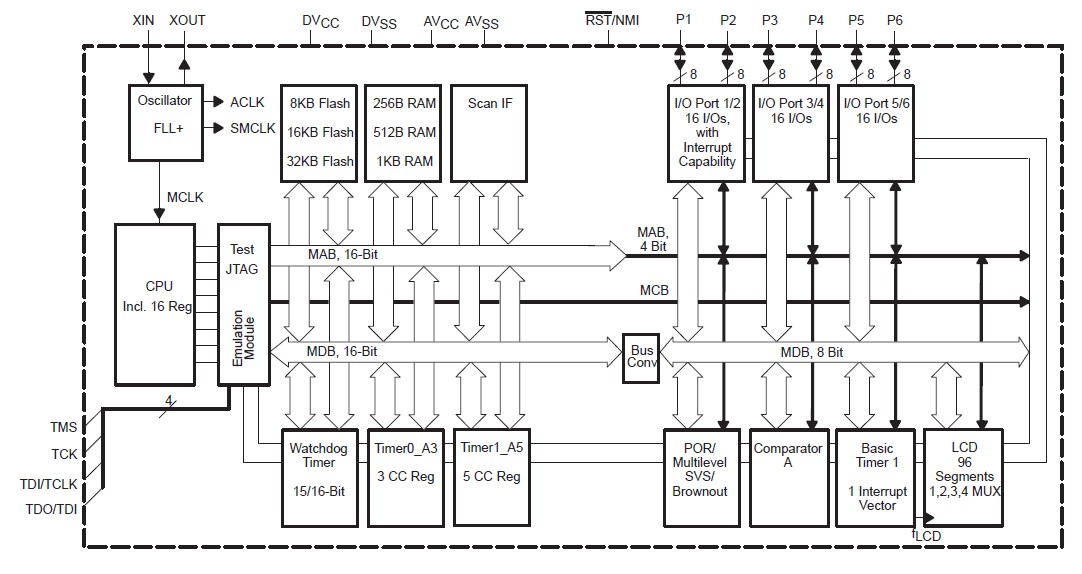

Diagrams
