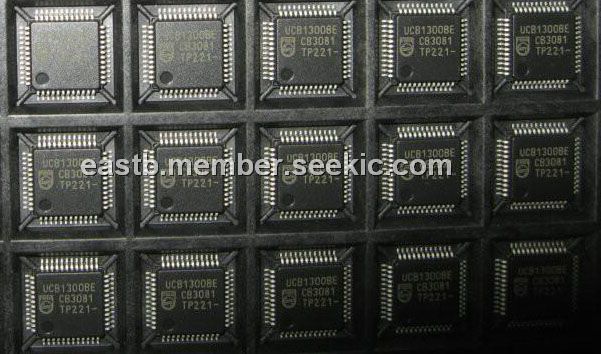

UCB1300BE

Product Summary

The UCB1300BE is a single chip, integrated mixed signal audio and telecom codec. The UCB1300BE is designed for direct connection of a microphone and a speaker. The built-in telecom codec can directly be connected to a DAA and supports high speed modem protocols. The incorporated analog to digital converter and the touch screen interface provides complete control and read-out of an 4 wire resistive touch screen. The 10 general purpose I/O pins provide programmable inputs and/or outputs to the system. The applications of the UCB1300BE include Handheld Personal Computers, Personal Intelligent Communicators, Personal Digital Assistants, Smart Mobile Phones, Screen/Web Phones, Internet Access Terminal and Modems.

Parametrics

UCB1300BE absolute maximum ratings: (1)VDD, supply voltage: -0.5 to +5.0 V; (2)VI, DC input voltage (except inputs AD0 - AD3): -0.5 to VDD + 0.5 V; (3)VI, DC input voltage AD0 - AD3: -0.5 to +8.5 V; (4)VO, DC output voltage: VDD + 0.5 V; (5)II(d), diode input current: 10 mA; (6)IO(d), diode output current: 10 mA; (7)IO, continuous output current, digital outputs: 4 mA; (8)Tstg, storage temperature: -55 to +150℃.

Features

UCB1300BE features: (1)48 pin LQFP (SOT313) small body SMD package and low external component count results in minimal PCB space requirement; (2)12-bit sigma delta audio codec with programmable sample rate, input and output voltage levels, capable of connecting directly to speaker and microphone, including digitally controlled mute, loopback and clip detection functions; (3)14-bit sigma delta telecom codec with programmable sample rate, including digitally controlled input voltage level, mute, loopback and clip detection functions. The telecom codec can be directly connected to a Data Access Arrangement (DAA) and includes a built in sidetone suppression circuit; (4)Complete 4 wire resistive touch screen interface circuit supporting position, pressure and plate resistance measurements; (5)10-bit successive approximation ADC with internal track and hold circuit and analog multiplexer for touch screen read-out and monitoring of four external high voltage (7.5V) analog voltages; (6)High speed, 4 wire serial interface data bus (SIB) for communication to the system controller; (7)3.3V supply voltage and built in power saving modes make the UCB1300 optimal for portable and battery powered applications; (8)Maximum operating current 25 mA; (9)10 general purpose IO pins.

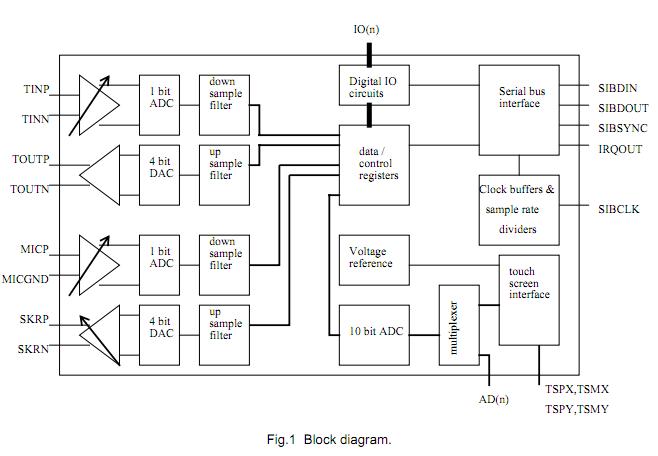

Diagrams
