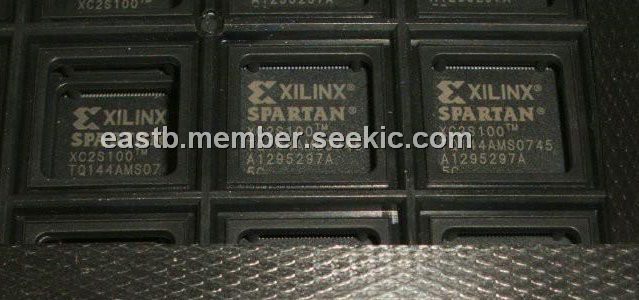

Product Summary
The XC2S100-5TQ144C0 is a Field-Programmable Gate Array. It gives users high performance, abundant logic resources, and a rich feature set, all at an exceptionally low price. The XC2S100-5TQ144C0 offers densities ranging from 15,000 to 200,000 system gates. System performance is supported up to 200 MHz. Features of the XC2S100-5TQ144C0 include block RAM (to 56K bits), distributed RAM (to 75,264 bits), 16 selectable I/O standards, and four DLLs. Fast, predictable interconnect means that successive design iterations continue to meet timing requirements.
Parametrics
XC2S100-5TQ144C0 absolute maximum ratings: (1)VCCINT, Supply voltage relative to GND:–0.5 to 3.0 V; (2)VCCO, Supply voltage relative to GND: –0.5 to 4.0 V; (3)VREF, Input reference voltage: –0.5 to 3.6 V; (4)VIN, Input voltage relative to GND, 5V tolerant I/O: –0.5 to 5.5 V; No 5V tolerance: –0.5 to VCCO+0.5 V; (5)VTS, Voltage applied to 3-state output, 5V tolerant I/O: –0.5 to 5.5 V; No 5V tolerance:–0.5 to VCCO +0.5 V; (6)TSTG, Storage temperature (ambient): –65 to +150℃; (7)TJ, Junction temperature: +125℃.
Features
XC2S100-5TQ144C0 features: (1)Fully PCI compliant; (2)Low-power segmented routing architecture; (3)Full readback ability for verification/observability; (4)Dedicated carry logic for high-speed arithmetic; (5)Dedicated multiplier support; (6)Cascade chain for wide-input functions; (7)Abundant registers/latches with enable, set, reset; (8)Four dedicated DLLs for advanced clock control; (9)Four primary low-skew global clock distribution nets; (10)IEEE 1149.1 compatible boundary scan logic.

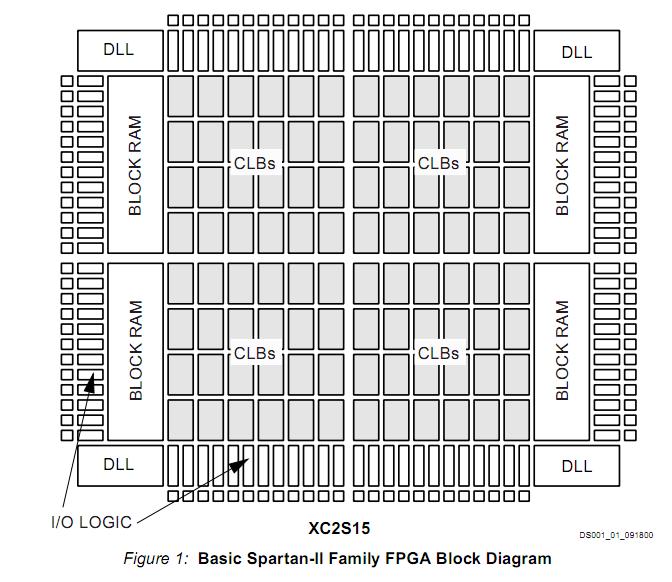

Diagrams
 |
 XC2S100 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
XC2S100-5FG256C |
|
IC FPGA 2.5V 600 CLB'S 256-FBGA |
Data Sheet |
|
|
||||||
|
XC2S100-5FG256I |
|
IC FPGA 2.5V I-TEMP 256-FBGA |
Data Sheet |
|
|
||||||
 |
XC2S100-5FG456C |
|
IC FPGA 2.5V 600 CLB'S 456-FBGA |
Data Sheet |
|
|
||||||
|
XC2S100-5FG456I |
|
IC FPGA 2.5V I-TEMP 456-FBGA |
Data Sheet |
Negotiable |
|
||||||
|
XC2S100-5FGG256C |
|
IC SPARTAN-II FPGA 100K 256-FBGA |
Data Sheet |
|
|
||||||
