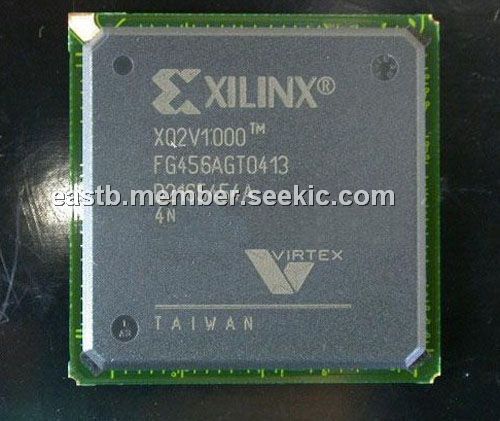

Product Summary

The XQ2V1000-4FG456I is a platform FPGA developed for high performance from low-density to high-density designs. It is based on IP cores and customized modules. The XQ2V1000-4FG456I delivers complete solutions for telecommunication, wireless, networking, video, and DSP applications, including PCI, LVDS, and DDR interfaces.

Parametrics

XQ2V1000-4FG456I absolute maximum ratings: (1)VCCINT, Internal supply voltage relative to GND: –0.5 to 1.65 V; (2)VCCAUX, Auxiliary supply voltage relative to GND: –0.5 to 4.0 V; (3)VCCO, Output drivers supply voltage relative to GND: –0.5 to 4.0 V; (4)VBATT, Key memory battery backup supply: –0.5 to 4.0 V; (5)VREF, Input reference voltage: –0.5 to VCCO + 0.5 V; (6)VIN, Input voltage relative to GND (user and dedicated I/Os): –0.5 to VCCO + 0.5 V; (7)VTS, Voltage applied to 3-state output (user and dedicated I/Os): –0.5 to 4.0 V; (8)TSTG, Storage temperature (ambient): –65 to +150℃; (9)TSOL, Maximum soldering temperature: +220℃; (10)TJ, Operating junction temperature: +125℃.

Features

XQ2V1000-4FG456I features: (1)Industry First Military Grade Platform FPGA Solution; (2)Certified to MIL-PRF-38535 (Qualified Manufacturer Listing); (3)100% Factory Tested; (4)Guaranteed over the full military temperature range (–55 to +125℃); (5)Ceramic and Plastic Wire-Bond and Flip-Chip Grid Array Packages; (6)Fast SelectMAP configuration; (7)Triple Data Encryption Standard (DES) security option (Bitstream Encryption); (8)IEEE 1532 support; (9)Partial reconfiguration; (10)Unlimited reprogrammability; (11)Readback capability.

Diagrams

XQ2V1000-4FG456I block diagram
