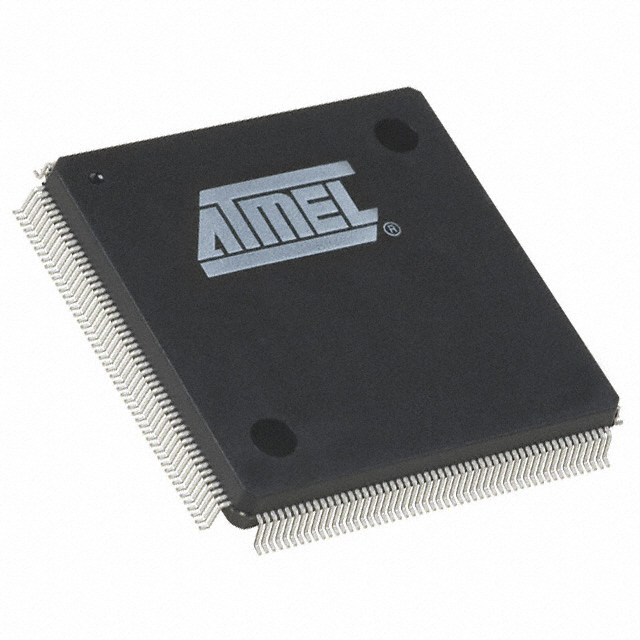

AT91RM9200

Microcontroller, 256BGA, 180MHz, 1.65 V ~ 1.95 V, AT91RM9200, ATMEL

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~50.00

PartNumber:: AT91RM9200

Brand:: ATMEL Corporation - ATMEL | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. lucky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-17

From Other Seller

Part Number:AT91RM9200
US $1.00 - 50.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT91RM9200 is a Microcontroller. It is a kind of complete system-on-chip built around the ARM920T ARM Thumb processor. The AT91RM9200 incorporates a rich set of system and application peripherals and standard interfaces in order to provide a single-chip solution for a wide range of compute-intensive applications that require maximum functionality at minimum power consumption at lowest cost.

Parametrics

AT91RM9200 absolute maximum ratings: (1)Operating Temperature (Industrial): -40℃ to +85℃; (2)Storage Temperature: -60℃ to +150℃; (3)Voltage on Input Pins with Respect to Ground: -0.3V to +3.6V; (4)Maximum Operating Voltage (VDDCORE, VDDPLL and VDDOSC): 1.95V; (5)Maximum Operating Voltage (VDDIOM and VDDIOP): 3.6V; (6)DC Output Current (SDA10, SDCKE, SDWE, RAS, CAS): 16 mA; (7)DC Output Current (Any other pin): 8 mA.

Features

AT91RM9200 features: (1)Low Power: On VDDCORE 24.4 mA in Normal Mode, 520 μA in Standby Mode; (2)Additional Embedded Memories: 16K Bytes of SRAM and 128K Bytes of ROM; (3)External Bus Interface (EBI): Supports SDRAM, Static Memory, Burst Flash, Glueless Connection to CompactFlashand NAND Flash/SmartMedia; (4)Ethernet MAC 10/100 Base-T: Media Independent Interface (MII) or Reduced Media Independent Interface (RMII); Integrated 28-byte FIFOs and Dedicated DMA Channels for Receive and Transmit; (5)USB 2.0 Full Speed (12 Mbits per second) Host Double Port: Dual On-chip Transceivers (Single Port Only on 208-lead PQFP Package); Integrated FIFOs and Dedicated DMA Channels; (6)USB 2.0 Full Speed (12 Mbits per second) Device Port: On-chip Transceiver, 2-Kbyte Configurable Integrated FIFOs; (7)Multimedia Card Interface (MCI): Automatic Protocol Control and Fast Automatic Data Transfers; MMC and SD Memory Card-compliant, Supports Up to Two SD Memory Cards; (8)Two-wire Interface (TWI): Master Mode Support, All 2-wire Atmel EEPROMs Supported.
