Product Summary
The ATF16V8B-15JU is a high performance CMOS (Electrically Erasable) Programmable Logic Device (PLD) which utilizes Atmel proven electrically erasable Flash memory technology. Speeds down to 7.5ns are offered. All speed ranges of ATF16V8B-15JU are specified over the full 5V ± 10% range for industrial temperature ranges, and 5V ± 5% for commercial temperature ranges. Several low power options allow selection of the best solution for various types of power-limited applications. Each of the ATF16V8B-15JU options significantly reduces total system power and enhances system reliability.
Parametrics
ATF16V8B-15JU absolute maximum ratings: (1)Temperature Under Bias: -55℃to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -2.0V to +7.0V; (4)Voltage on Input Pins with Respect to Ground During Programming: -2.0V to +14.0V; (5)Programming Voltage with Respect to Ground: 2.0V to +14.0V.
Features
ATF16V8B-15JU features: (1)Industry Standard Architecture; (2)High-Speed Electrically Erasable Programmable Logic Devices; (3)Several Power Saving Options; (4)CMOS and TTL Compatible Inputs and Outputs; (5)Advanced Flash Technology; (6)High Reliability CMOS Process; (7)Commercial, and Industrial Temperature Ranges; (8)Dual-in-Line and Surface Mount Packages in Standard Pinouts.

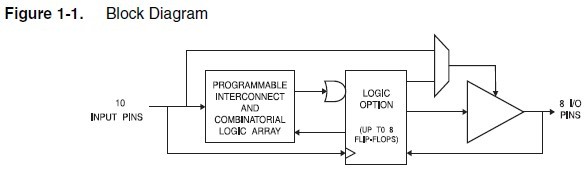

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATF16V8B-15JU |
Atmel |
EEPLD - Electronically Erasable Programmable Logic Devices 15 ns 20 I/O Pins 8 macorcells 8 reg |
Data Sheet |
|
|
||||||||||||
