Product Summary

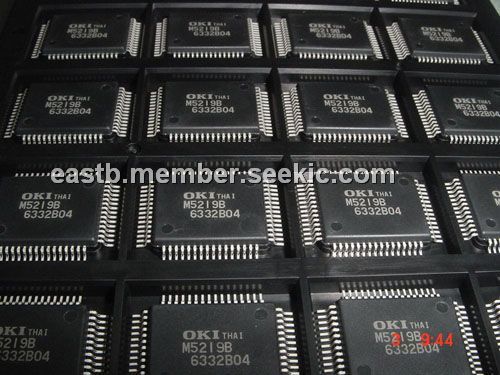

The M5219B is a 48 dot static LCD driver which is fabricated by low power CMOS metal gate technology. The M5219B consists of 48-bit shift register, 48-bit latch and 48-bit LCD driver. The display data, which was input to the 48-bit shift register, is shifted to the 48-bit latch by the LOAD signal, Then the data is output to the LCD panel through the 48-bit LCD driver.
Parametrics
M5219B absolute maximum ratings: (1)supply voltage, VDD-VSS: -0.3 to 7V; (2)input voltage, VI: VSS-0.3 to VDD+0.3V; (3)storage temperature, Tstg: -55 to 150℃.
Features
M5219B features: (1)48 dots static LCD driving capability; (2)simple interface with micocomputer chip; (3)bit to bit correspondence between the input and the output; (4)cascade connection capability; (5)LCD driving AC frequency is directly input externally; (6)applicable as an output expander; (7)supply voltage 3-7V.
Diagrams
 |
