Product Summary

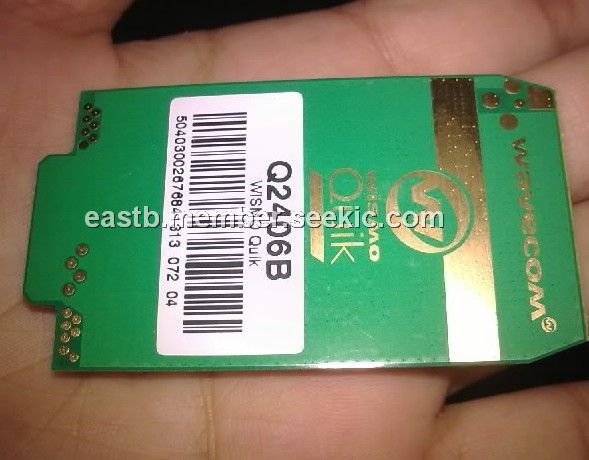

The Q2406B is a self-contained E-GSM/GPRS 900/1800 or 850/1900 bi-band module. The module is designed to fit in very small terminals and only some custom functions have to be added to make a complete bi-band solution: Keypad and LCD module, Earpiece and Microphone, Base connector, Battery, Antenna switch and SIM connector.

Parametrics

Q2406B absolute maximum ratings: (1)Resolution: 10 bits; (2)Sampling rate: 90.3 Ksps; (3)Input signal range: 0 to 2.8V; (4)ADC Reference Accuracy: 0.75 to 2 %; (5)Integral Accuracy: +/- 1 LSB; (6)Differential Accuracy: +/- 1 LSB; (7)Input Impedance (R): 10 MΩ; (8)Input Impedance (C): 100 nF.

Features

Q2406B features: (1)58.4 × 32.2 × 3.9 mm; (2)2 Watts EGSM 900/GSM 850 radio section running under 3.6 Volts; (3)1 Watt GSM1800/1900 radio section running under 3.6 Volts; (4)Digital section running under 2.8 Volts; (5)3V SIM interface; (6)Real Time Clock with calendar; (7)Battery charger; (8)Echo Cancellation + noise reduction; (9)Full GSM or GSM/GPRS software stack; (10)Hardware GPRS class 10 capable; (11)Complete shielding.

Diagrams

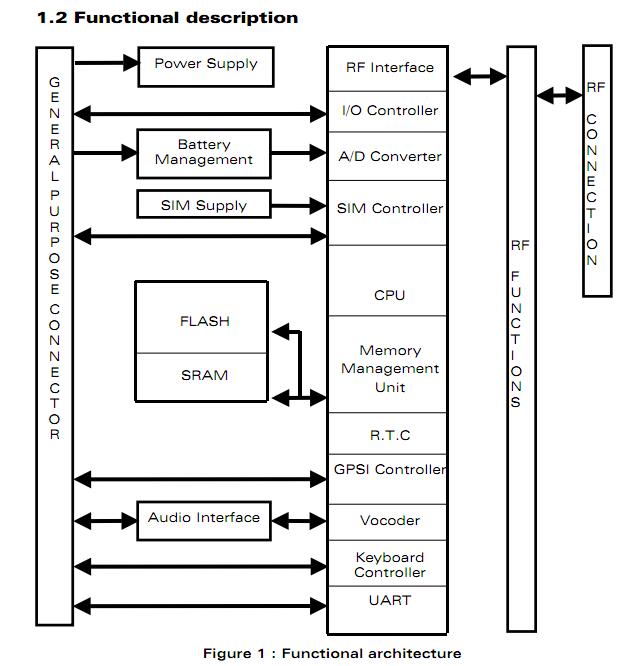

Q2406B block diagram
