Product Summary

The TL16C752BPT is a 3.3V dual uart with 64-byte FIFO.

Parametrics

TL16C752BPT absolute maximum ratings: (1)Supply voltage ,VCC: 3.6V; (2)Input voltage, VI:VCC V; (3)High-level input voltage, VIH: VCC V; (4)Low-level input voltage, VIL: 0.3VCC V; (5)Output voltage, VO: vcc V; (6)Input capacitance, CI: 18pF; (7)Operating free-air temperature, TA: 110℃.

Features

TL16C752BPT features: (1)False start bit detection; (2)Complete status reporting capabilities in both normal and sleep mode; (3)Line break generation and detection; (4)Internal test and loopback capabilities; (5)Modem control functions.

Diagrams

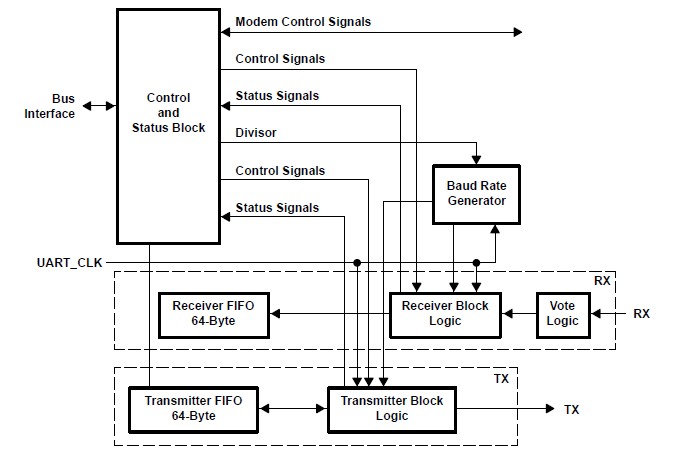

TL16C752BPT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TL16C752BPT
TL16C752BPT
Texas Instruments
UART Interface IC Dual UART With 64-Byte FIFO
Data Sheet
0-1: $3.90
1-25: $3.63
25-100: $3.28
100-250: $3.01
TL16C752BPTG4
TL16C752BPTG4
Texas Instruments
UART Interface IC Dual UART With 64-Byte FIFO
Data Sheet
0-147: $3.05
147-250: $2.39
250-500: $2.36
500-1000: $2.33
TL16C752BPTR
TL16C752BPTR
Texas Instruments
UART Interface IC Dual UART With 64-Byte FIFO
Data Sheet
0-1: $3.33
1-25: $2.44
25-100: $2.06
100-250: $1.96
TL16C752BPTRG4
TL16C752BPTRG4
Texas Instruments
UART Interface IC Dual UART With 64-Byte FIFO
Data Sheet
0-775: $1.92
775-1000: $1.90
1000-2000: $1.86
