Product Summary

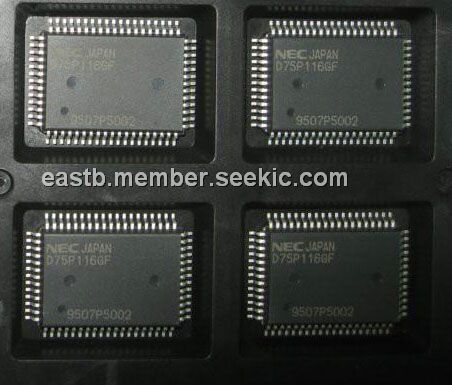

The UPD75P116GF-3BE is a 4-bit single-chip microcomputer. It is suitable for evaluation in system development and limited production.
Parametrics
UPD75P116GF-3BE absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 7.0V; (2)Supply voltage, VPP: -0.3 to 13.5V; (3)Input voltage, V11: -0.3 to VDD+0.3V; V12: -0.3 to 13V; (4)Output voltage, VO: -0.3 to VDD+ 0.3V; (5)Output current high, ioh: -15mA 1 pin; -30mA total pins; (6)Output current low, IOL: 30mA; (7)Operating temperature, Topt: -40 to 85℃; (8)Storage temperature, Tstg: -65 to 125℃.
Features
UPD75P116GF-3BE features: (1)μPD75116 compatible; (2)Program memory (PROM) capacitance: 16256 × 8 bits; (3)Data memory (RAM) capacitance: 512 × 4 bits; (4)Single power supply 5 V ± 10%.

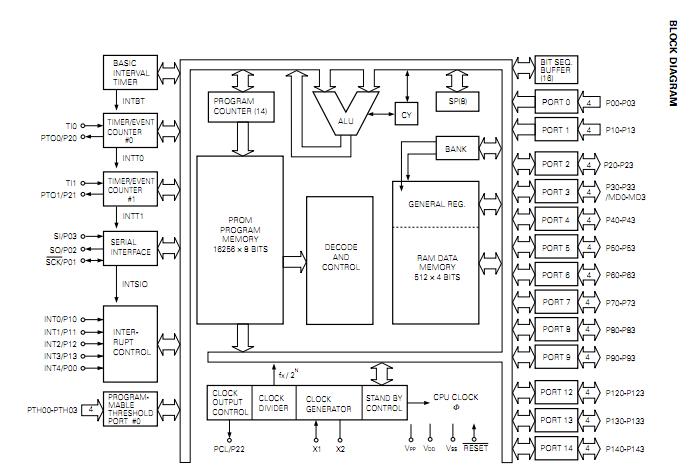

Diagrams
 |
