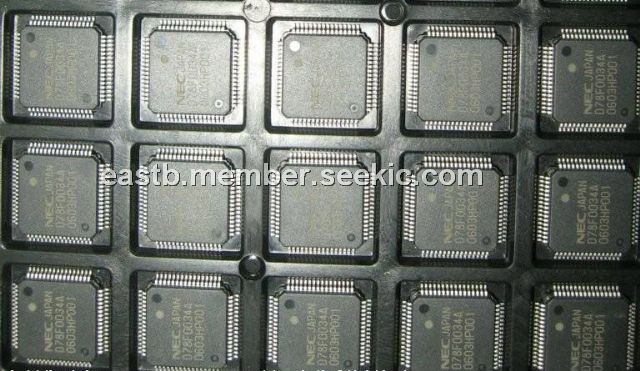

UPD78F0034AGB-8EU

8-bit single-chip microcontroller, QFP, –0.3 to +6.5 V, –10 mA, UPD78F0034AGB-8EU, NEC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $11.00~12.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $11.00~12.50

PartNumber:: UPD78F0034AGB-8EU

Brand:: NEC - Nec | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. lucky's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-22

From Other Seller

Part Number:UPD78F0034AGB-8EU
US $11.00 - 12.50
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The UPD78F0034AGB-8EU is an 8-bit single-chip microcontroller. The UPD78F0034AGB-8EU incorporates flash memory, which can be programmed and erased while mounted on the board.

Parametrics

UPD78F0034AGB-8EU absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to +6.5 V; VPP: –0.3 to +10.5 V; AVDD: –0.3 to VDD + 0.3Note V; AVREF: –0.3 to VDD + 0.3Note V; AVSS: –0.3 to +0.3 V; (2)Input voltage, VI1: –0.3 to VDD + 0.3Note V; (3)Output voltage, VO: –0.3 to VDD + 0.3Note V; (4)Analog input voltage, VAN: –0.3 to AVREF + 0.3V; (5)Output current, high IOH : –10 mA; (6)Output current, low IOL: 20 mA; (7)Operating ambient temperature, TA: –40 to +85℃; (8)Storage temperature, Tstg: –40 to +125℃.

Features

UPD78F0034AGB-8EU features: (1)Pin-compatible with mask ROM versions (except VPP pin); (2)Flash memory: 32 KB; (3)Internal high-speed RAM: 1,024 bytes; (4)Supply voltage: VDD = 1.8 to 5.5 V.
